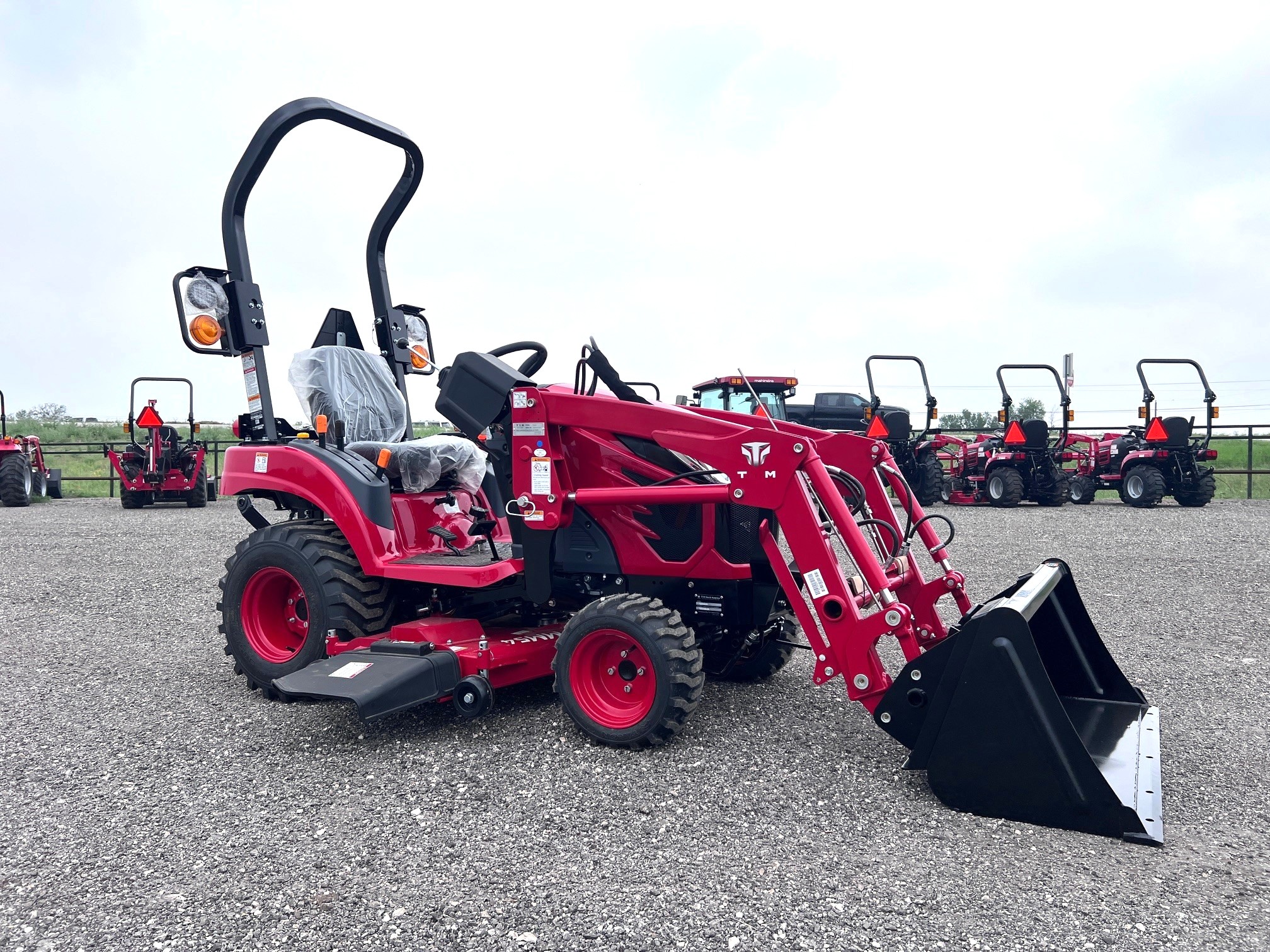

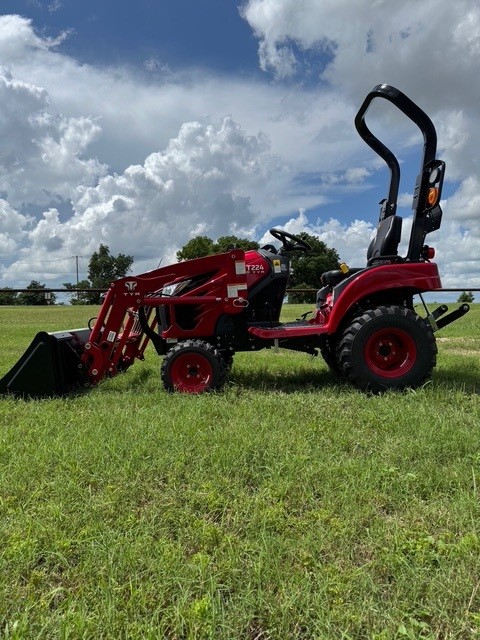

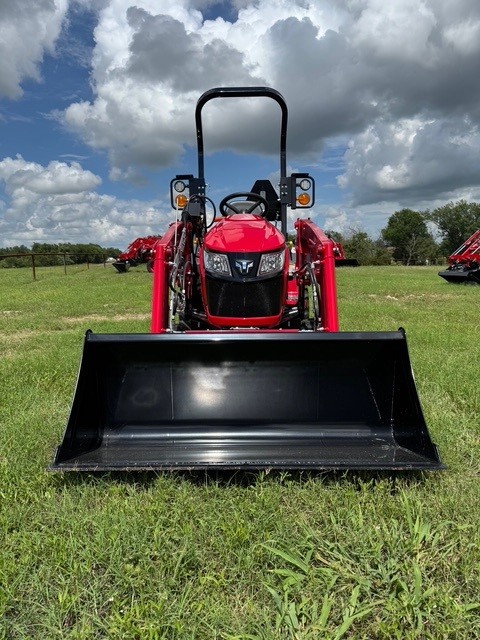

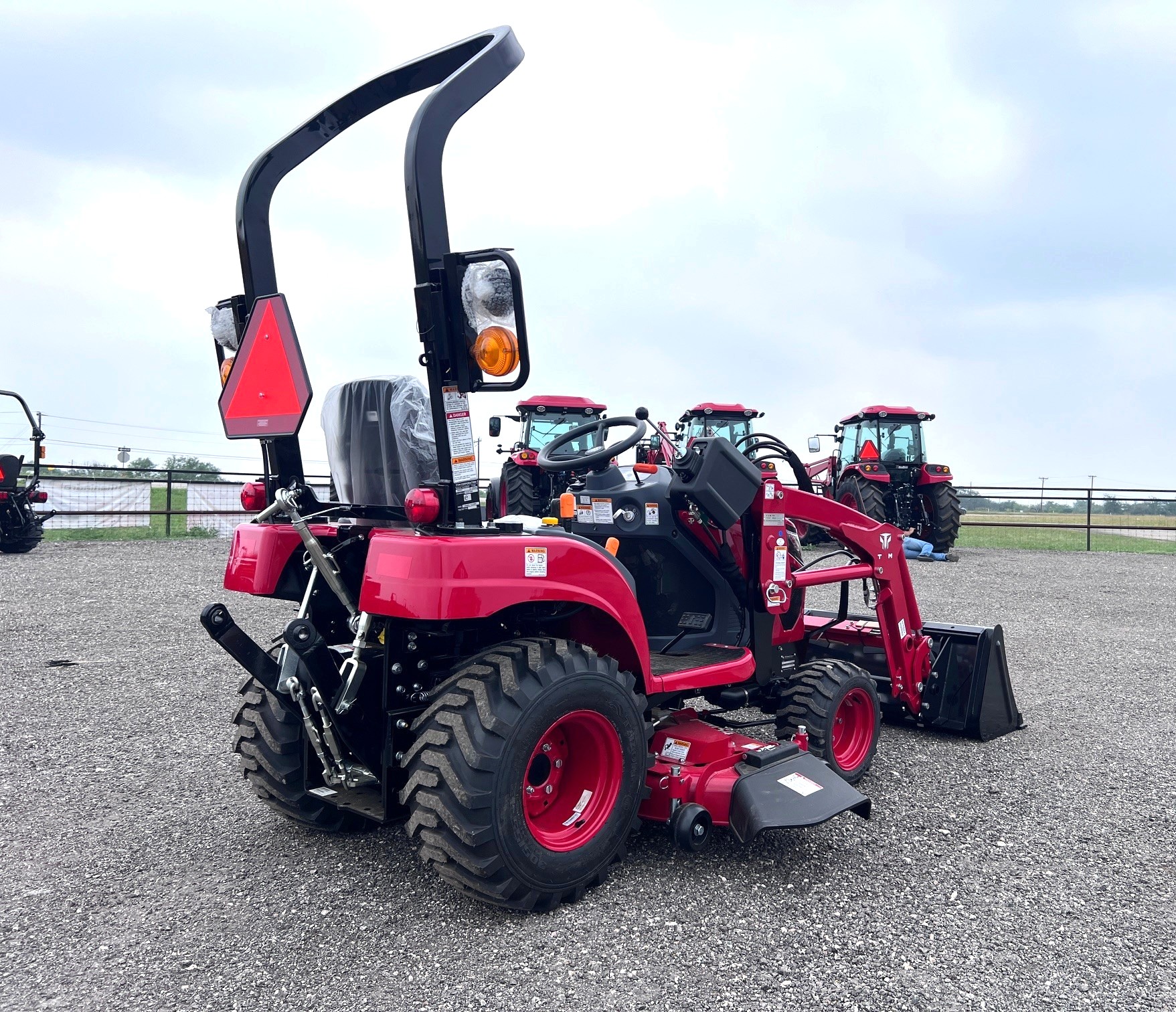

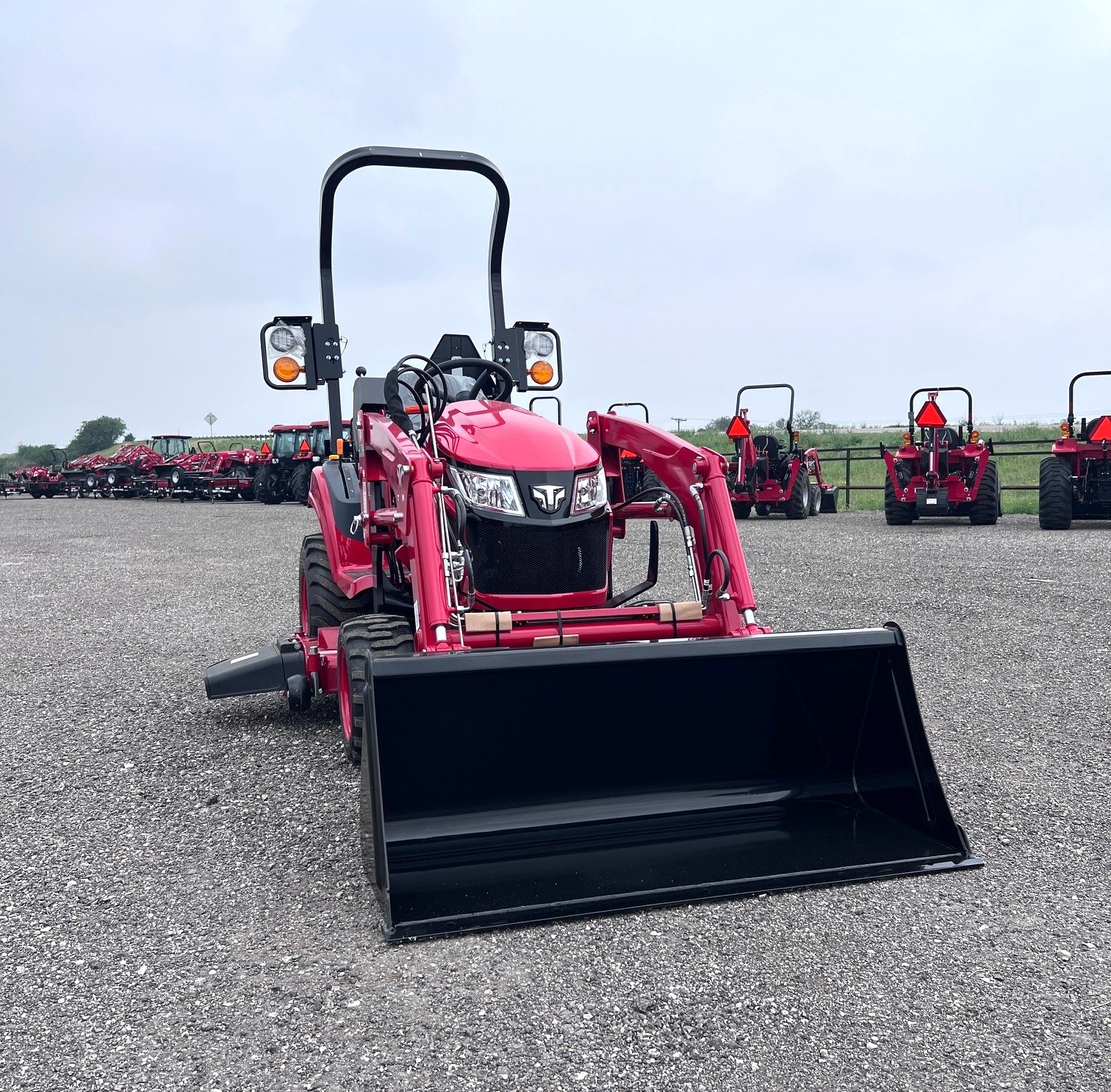

New TYM T224H
Description
TYM T224H — Specifications
Engine
Specification | Details |
Engine Manufacturer | Yanmar |
Engine Model | 3TNV74F |
Engine Type | Liquid-cooled, 3-cylinder diesel |
Engine Horsepower | 21.5 HP |
PTO Horsepower | 15.1 HP |
Displacement | 993 cc / 60.6 cu. in. |
Rated Engine Speed | 3,200 RPM |
Aspiration | Naturally aspirated |
Fuel System | Indirect injection |
Fuel Tank Capacity | 6.6 gallons |
Transmission & Drivetrain
Specification | Details |
Transmission | Hydrostatic transmission (HST) |
Transmission Ranges | 2 ranges |
Maximum Travel Speed | 8.4 MPH |
Steering | Hydrostatic power steering |
Brakes | Wet disc |
PTO & Hydraulics
Specification | Details |
PTO Type | Independent |
PTO Engagement | Electro-hydraulic |
Rear PTO Speed | 540 RPM |
Hydraulic Pump | Single gear pump |
Implement Hydraulic Flow | 4.6 GPM |
Steering Hydraulic Flow | 2.1 GPM |
Total Hydraulic Flow | 6.7 GPM |

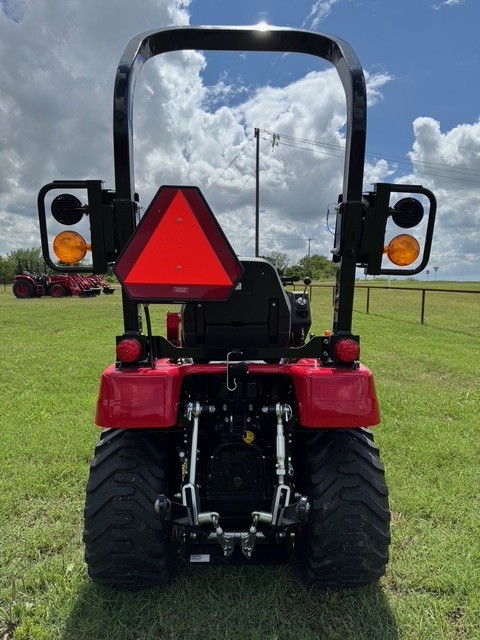

Three-Point Hitch | Category I, narrow configuration |
Hitch Lift Capacity | 1,100 lbs. |
Lift Capacity at 24" Behind Link Ends | 679 lbs. |
Hitch Control | Position control |
Dimensions & Weight
Specification | Details |
Overall Length with Three-Point Hitch | 94.2" |
Overall Width | 44.5" |
Height to Top of ROPS | 86.6" |
Wheelbase | 53.1" |
Minimum Ground Clearance | 8.3" |
Tractor Weight with ROPS | 1,472 lbs. |

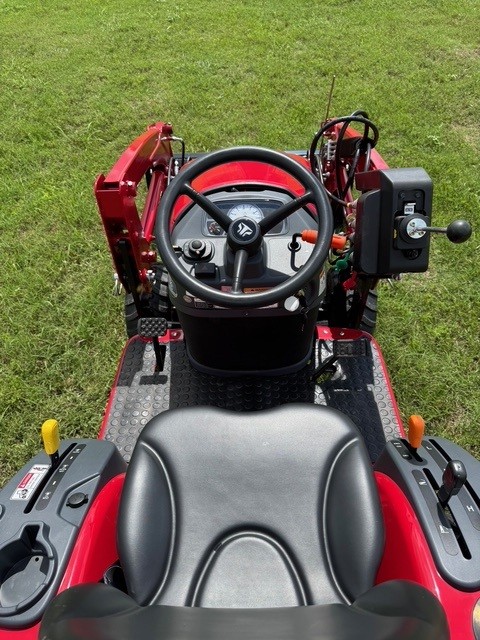

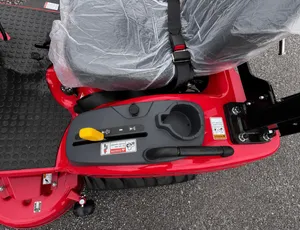

Operator Features
Feature | Details |
Operator Station | Open station with flat floor |
Rollover Protection | Foldable ROPS |
Safety Feature | Operator seat sensor |
Mower Height Adjustment | Console-mounted dial |
Compatible Mid-Mount Mower | Optional 54" mowing deck |
Manufacturer specifications shown. Tires, attachments, and installed options may vary by unit.
