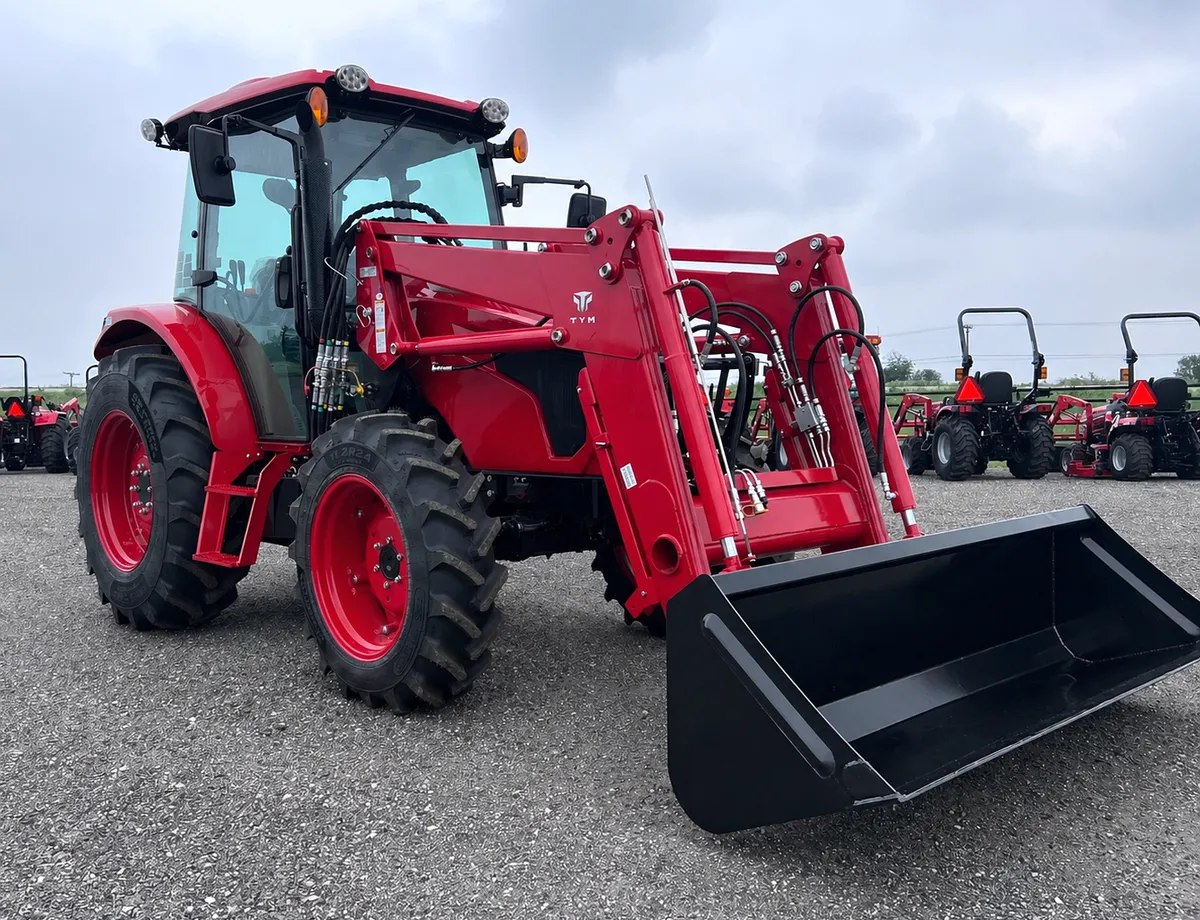

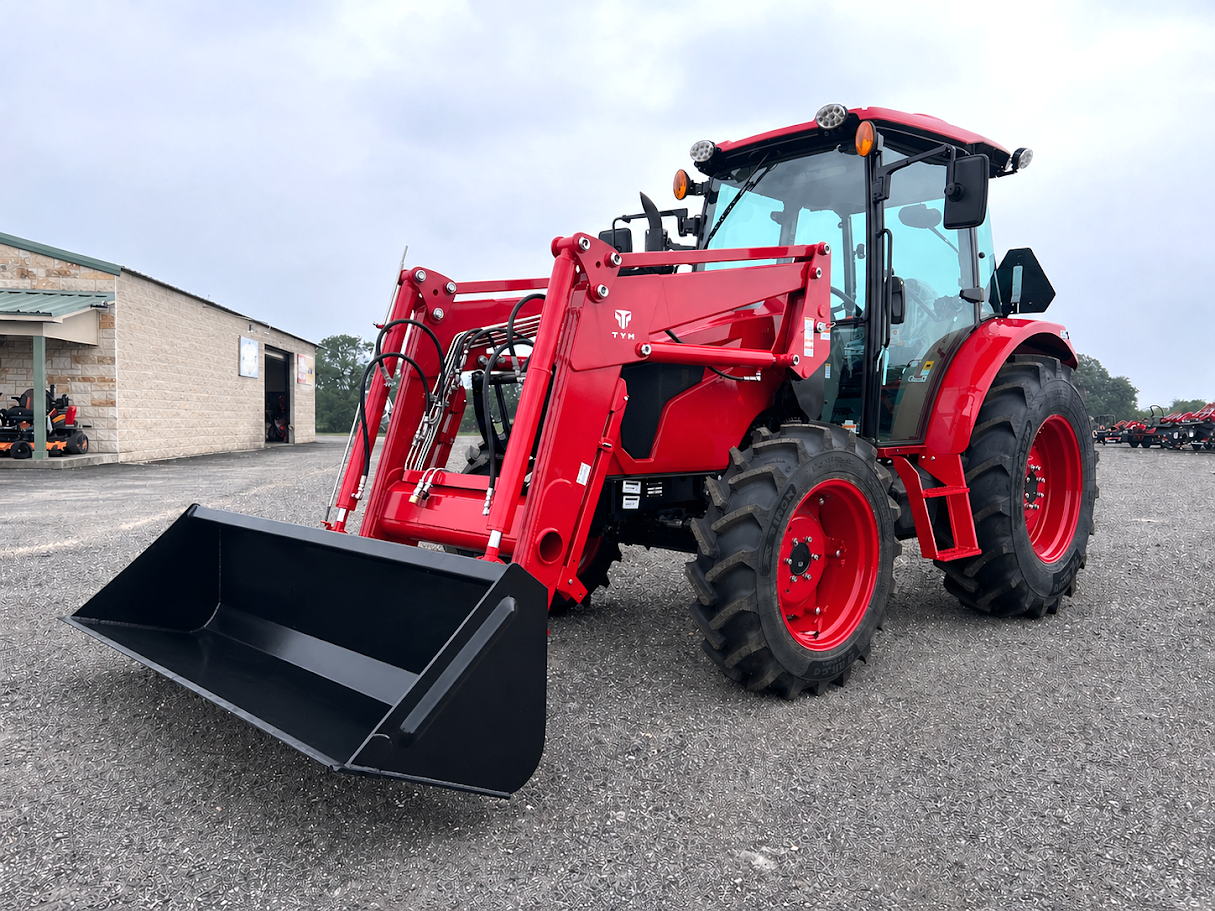

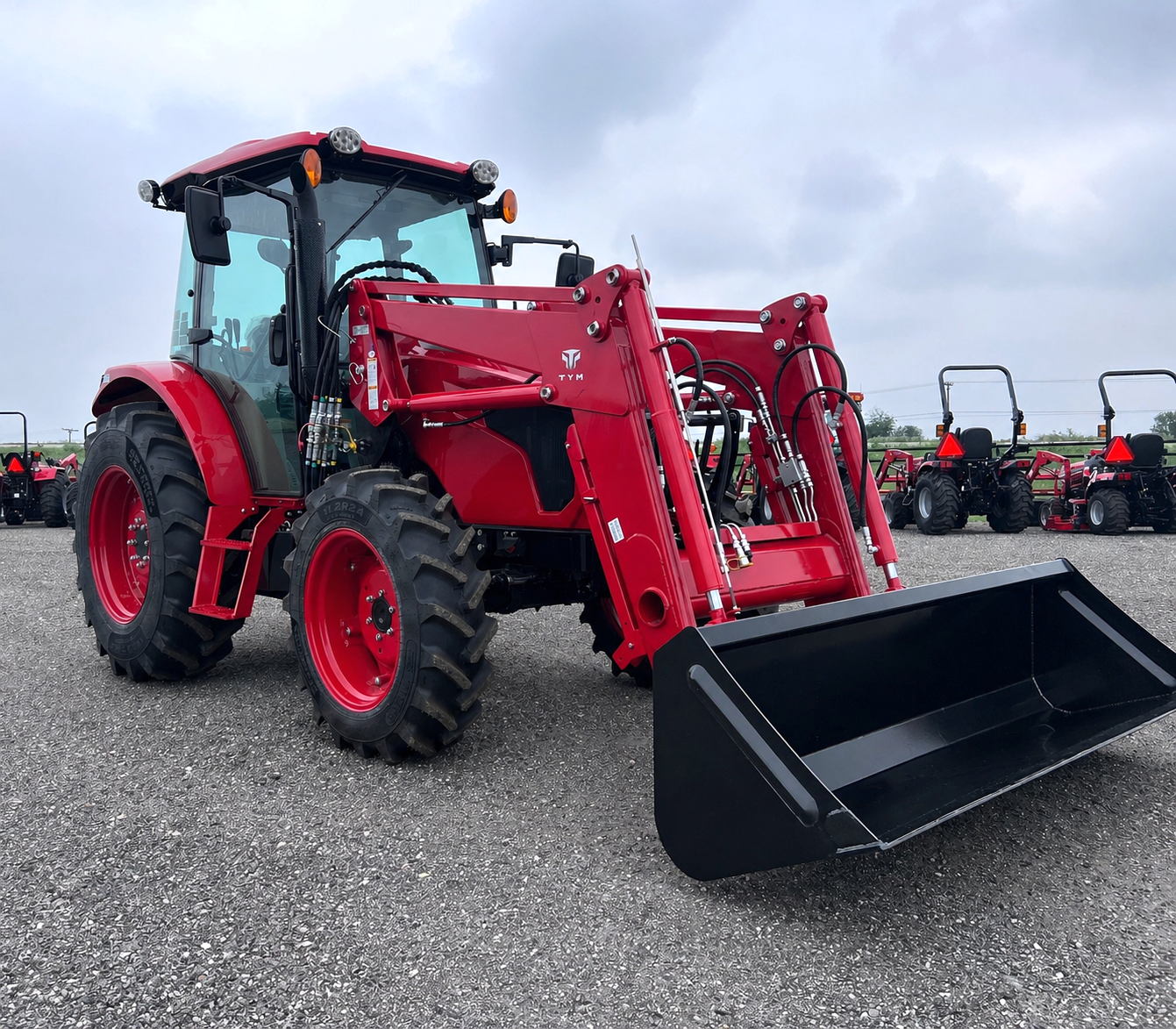

New TYM T5075PSC
Description
TYM T5075PSC — Specifications
Engine
Specification | Details |
Engine Manufacturer | Deutz |
Engine Model | TCD 2.9L |
Engine Type | Liquid-cooled, turbocharged, 4-cylinder diesel |
Engine Horsepower | 74.3 HP |
PTO Horsepower | 67.1 HP |
Displacement | 2.9 L / 178.5 cu. in. |
Rated Engine Speed | 2,200 RPM |
Fuel System | Common rail direct injection |
Fuel Tank Capacity | 23.7 gallons |
Transmission & Drivetrain
Specification | Details |
Transmission | Power shuttle |
Number of Speeds | 16 forward / 16 reverse with creeper interlock |
Maximum Travel Speed | 22.7 MPH |

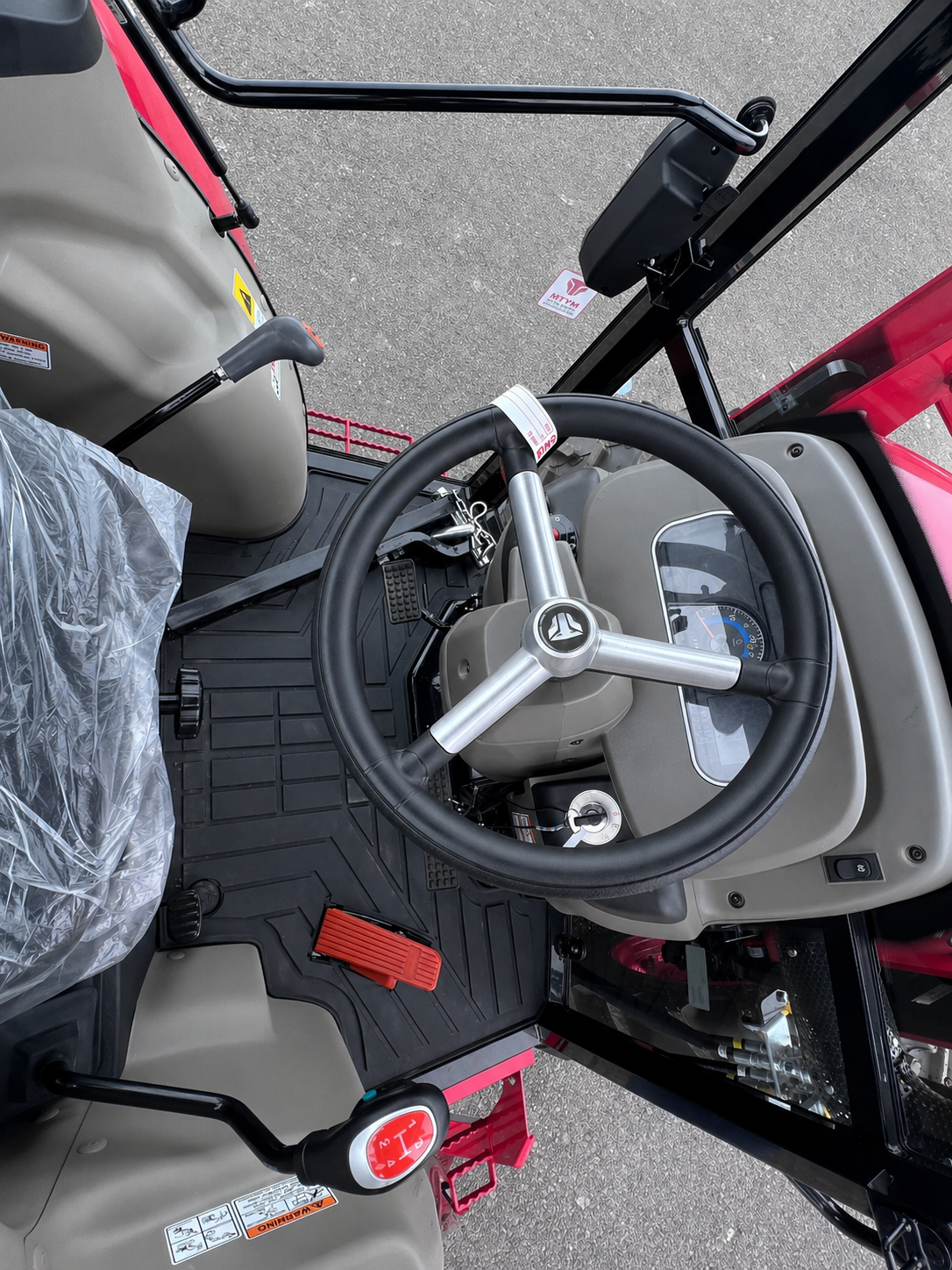

Steering | Hydrostatic power steering |
Brakes | Wet multi-disc |
Clutch | Wet multi-plate |
PTO & Hydraulics
Specification | Details |
PTO Type | Independent |
PTO Engagement | Electro-hydraulic |
Rear PTO Speeds | 540 / 750 RPM |
Hydraulic Pump | Dual gear pump |
Implement Hydraulic Flow | 10.3 GPM |
Steering Hydraulic Flow | 5.8 GPM |
Total Hydraulic Flow | 16.1 GPM |

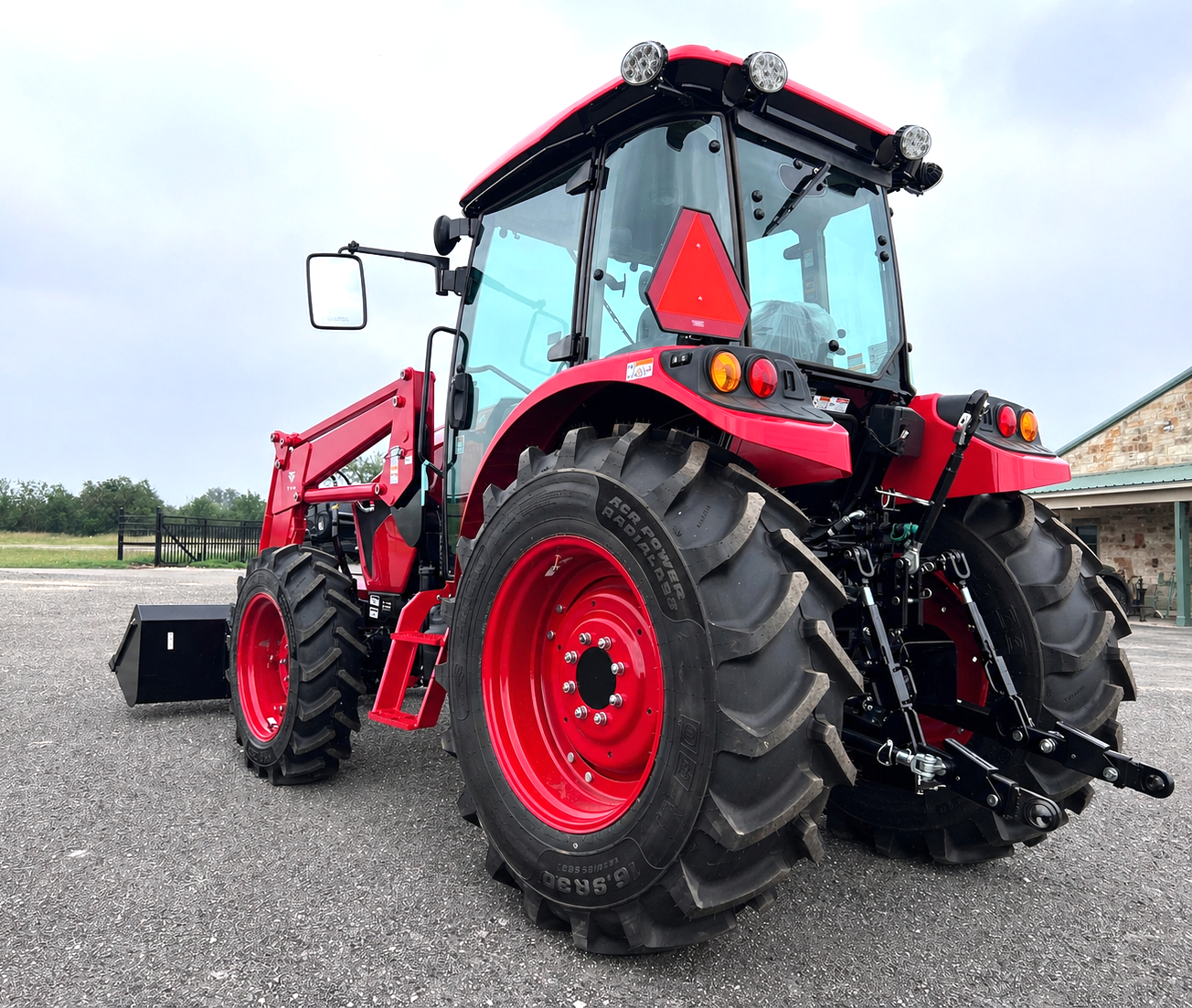

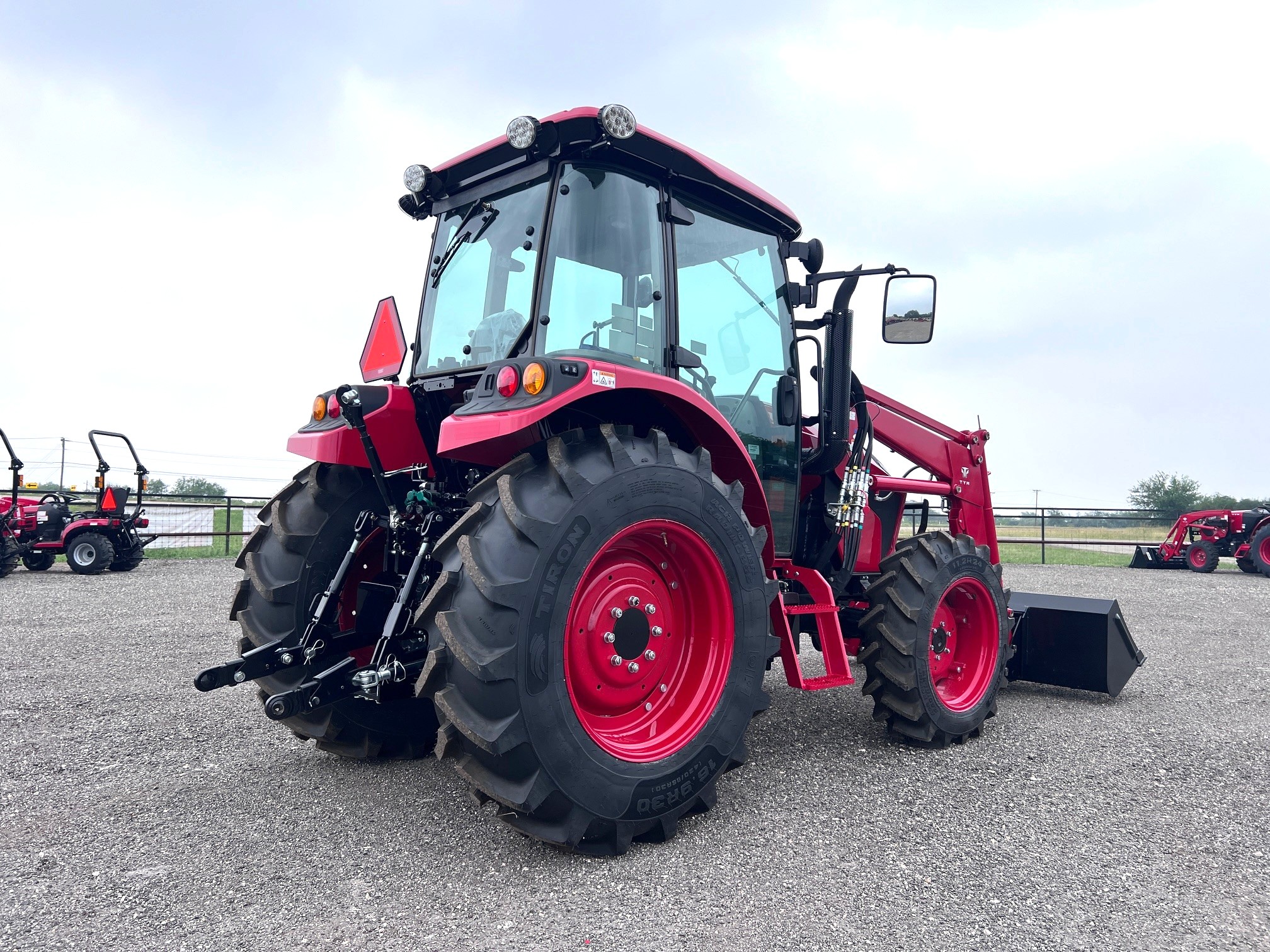

Three-Point Hitch | Category II |
Hitch Lift Capacity | 5,115 lbs. |
Lift Capacity at 24" Behind Link Ends | 3,418 lbs. |
Hitch Control | Position and draft |

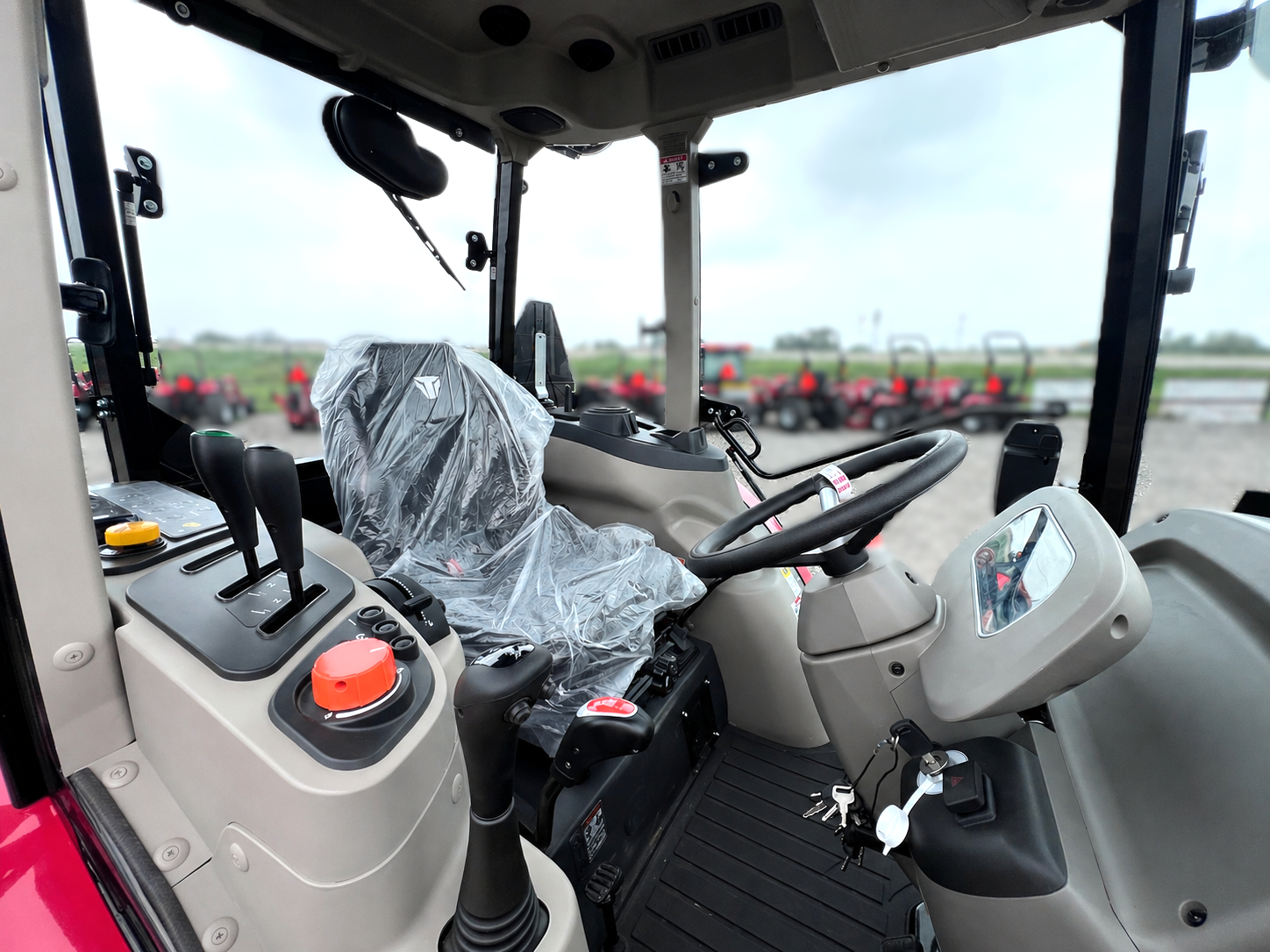

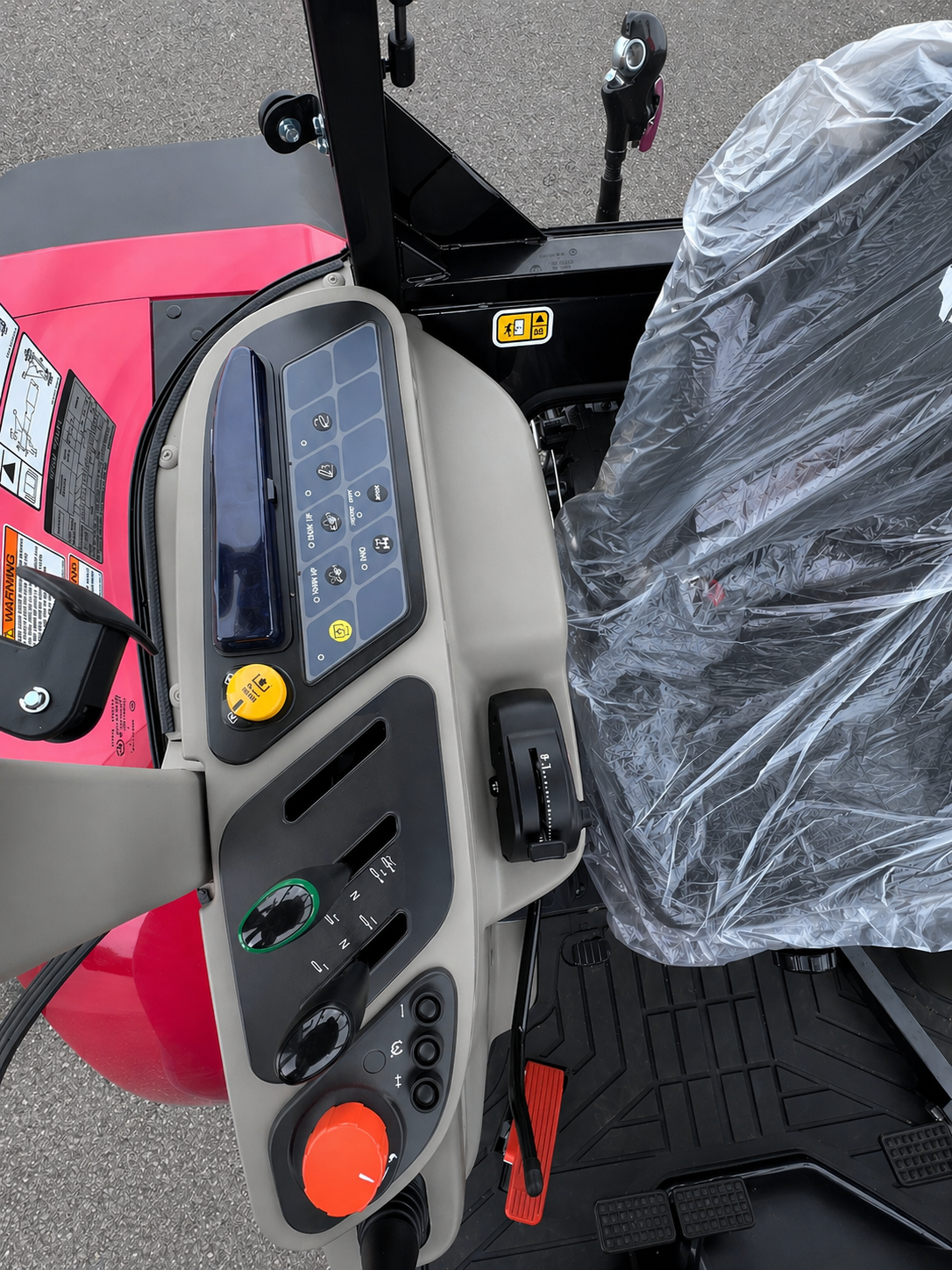

Cab & Operator Features
Feature | Details |
Operator Station | Enclosed cab |
Climate Control | Heat, air conditioning, and defrost vents |
Operator Seat | Suspension seat |
Rear Hitch Adjustment | External switch on rear fender |
Loader Hydraulics | Standard third-function valve |
Connectivity | USB charging port |
Telematics | Standard TYM monitoring system |
Dimensions & Weight
Specification | Details |
Overall Length with Three-Point Hitch | 168.1" |
Overall Width | 92.3" |
Height to Top of Cab | 104.9" |
Wheelbase | 86.1" |
Minimum Ground Clearance | 18.4" |
Tractor Weight with Cab | 6,316.2 lbs. |
Standard Agricultural Tires
Position | Tire Size |
Front | 280/85R24 |
Rear | 420/85R30 |
Manufacturer specifications shown for the power shuttle cab configuration. Tires, attachments, and installed options may vary by unit.
